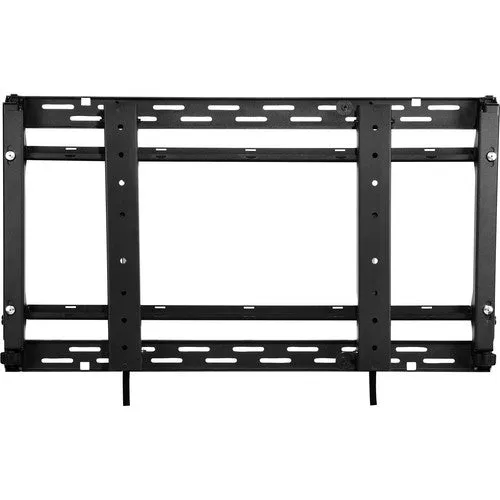

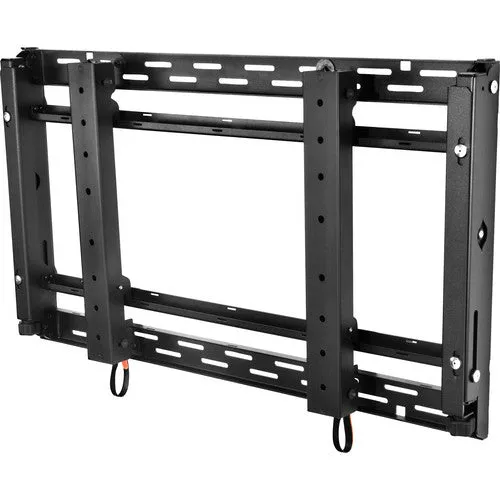

Peerless-AV’s Full-Service Video Wall Mount is easy to configure, quick to install and a snap to maintain. Create any configuration imaginable, but leave the tedious calculations to the custom wall plate spacers. The mount’s innovative design is loaded with timesaving features like no-tool-required micro-adjustments and easy-access to any display for quick serviceability.

• Modular mount for unlimited video wall display configurations
• Displays and mounts sit flush against the wall for a clean side appearance
• Integrated cable management tie-backs make display-to-display cabling simple

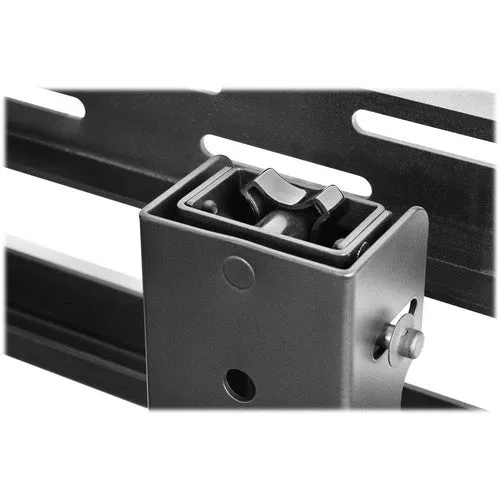

• Spring loaded mechanism allows displays to click securely into place against the wall
• Simple, tool-less micro-adjustments at 8 points seamlessly align the displays

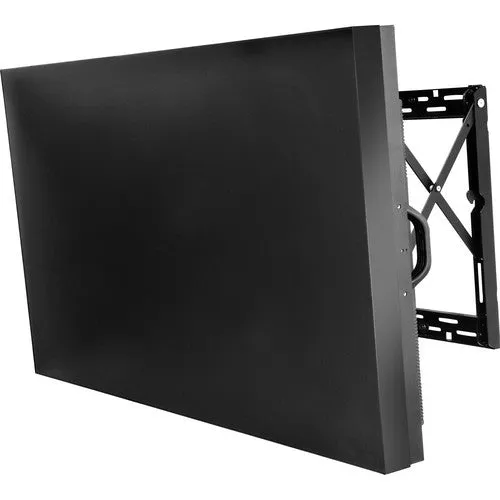

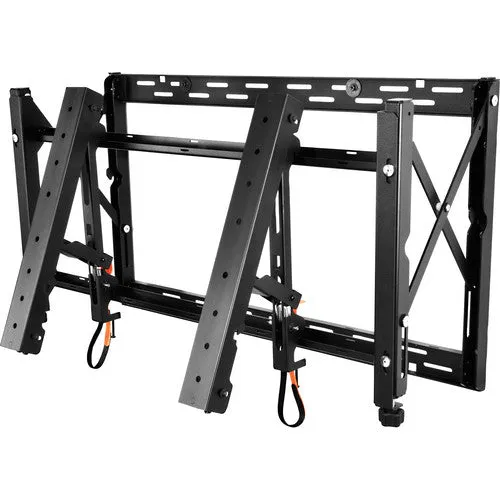

• Pull-out/prop-open mechanism provides quick service access| Open wall plate architecture allows for total wall access that increases electrical and cable management options
• Included security hardware prevents the mount from extending out from the wall
• Adjustable VESA® mounting hole patterns in 100mm increments, starting at 200 x 200mm up to 700 x 400mm, additional patterns supported with adaptor plates
• Reusable custom wall spacers eliminate guesswork and on-site installation calculations (sold separately)

Product Specifications

• Minimum to Maximum Screen Size

  40" to 65"

• VESA Pattern

  200 x 200 up to 700 x 400

• Weight Capacity

  125lb (56.8kg)

• Color

  Black

• Finish

  Powder Coat

• Security Features

  Secuirty Hardware

• Distance from Wall

  3.08 - 3.83" (78 - 97mm)

• Product Dimensions

  35.00 X 20 X 3.08 - 3.83" (890 X 508 X 78 - 97mm)
