Product Details
＋

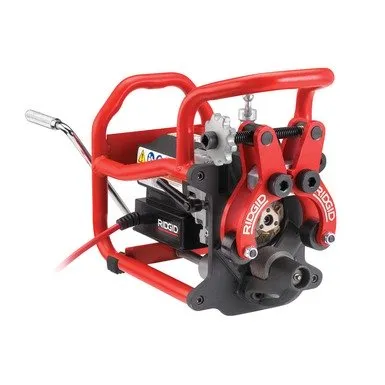

The B-500 Transportable Pipe Beveller produces high quality bevels in 45 seconds* without flames or sparks. The compact design quickly mounts to pipe 4â☸Î and up with a maximum wall thickness of 1/2â☸Î, and creates consistent bevels in a single pass.
Features|
Speed |
Set-up and bevel 10" diameter schedule 40 pine in 45 seconds |
| Pipe is cool to the touch immediately following beveling | |
|
Consistency |
Accurate bevel angle around diameter of the pipe allows for optimal number of cover passes |
| Adjustable land width from 0"-3/16" to fit welders requirements | |
| Produces a machined finish due to 6 replaceable cutter inserts working simultaneously | |
|
Simplicity |
Fast to set-up and operate |
| Patent pending clamp system firmly secures tool to the pipe | |
| Speed monitoring with led indicators for optimal cutter performance | |
| Grinding spark free operation |
|
Capacity |
4" pipe and larger, flat plate |
| Pipe Wall/Plate Thickness | Min 0.188" (4.8 mm)/Max 0.5" (12.7 mm) |
| Models Equip With | 30, 37.5, or 45 degree (with optimal cutter heads) |
| Cutter Head | Rated for most steel and stainless steel |
| Size | 15.8" (401 mm) L x 11.5" (292 mm) W x 13.3" (338 mm) H |
| Land Width | 0"-3/16" (4.8 mm) in approximately 1/32" (0.8 mm) increments |
| Motor Type | Universal single-phase |
| Motor RPM | 950 (no load) |
| Body | Steel frame |
