Functions
Frequency Range: VHF 136-174MHZ UHF: 400-480MHz
Output Power: VHF 25Watt, UHF 20Watt
CTCSS/DCS/5Tone/2Tone/DTMF
FM Radio Function, PTT ID, Auto Lock, Remote stun, Remote Kill
200 Channels
Mini size: 98*35*118 mm

General
Frequency Range: VHF:136~174MHz UHF:/400-480MHz
Channel Capacity: 200
Channel Spacing: 25KHz 20KHz 12.5KHz
Phase lock step: 5K, 6.25K, 10K, 12.5K, 15K,25K
Working Voltage: 13.8V DC±15%
Frequency Stability: ±2.5ppm
Operating Temperature: -20℃~ 60℃
Operating Voltage: 13.8V DC ± 15%
Weight (with bracket): 866g

Receiver
Sensitivity: ≤0.25μV / ≤0.35μV
Channel choice: ≥70dB / ≥60dB
Intermodulation: ≥65dB / ≥60dB
Inter-modulation Rejection: ≥60dB / ≥65dB
Spurious Rejection: ≥70dB / ≥70dB
Signal to noise ratio: ≥45dB / ≥40dB
Audio Distortion: ≤5%
Audio output power:≥2W@10%

Transmitter
Output power: 25W/20W(VHF/UHF)
Modulation Mode: 16KΦF3E / 11KΦF3E
Channel Power: ≥70dB / ≥60B
Signal to noise ratio: ≥40dB / ≥36dB
Parasitic harmonic: ≥60dB/ ≥60dB
Audio response: 1~ -3dB(0.3~3KHz) / 1~ -3dB(0.3~2.55KHz)
Audio distortion: ≤5%

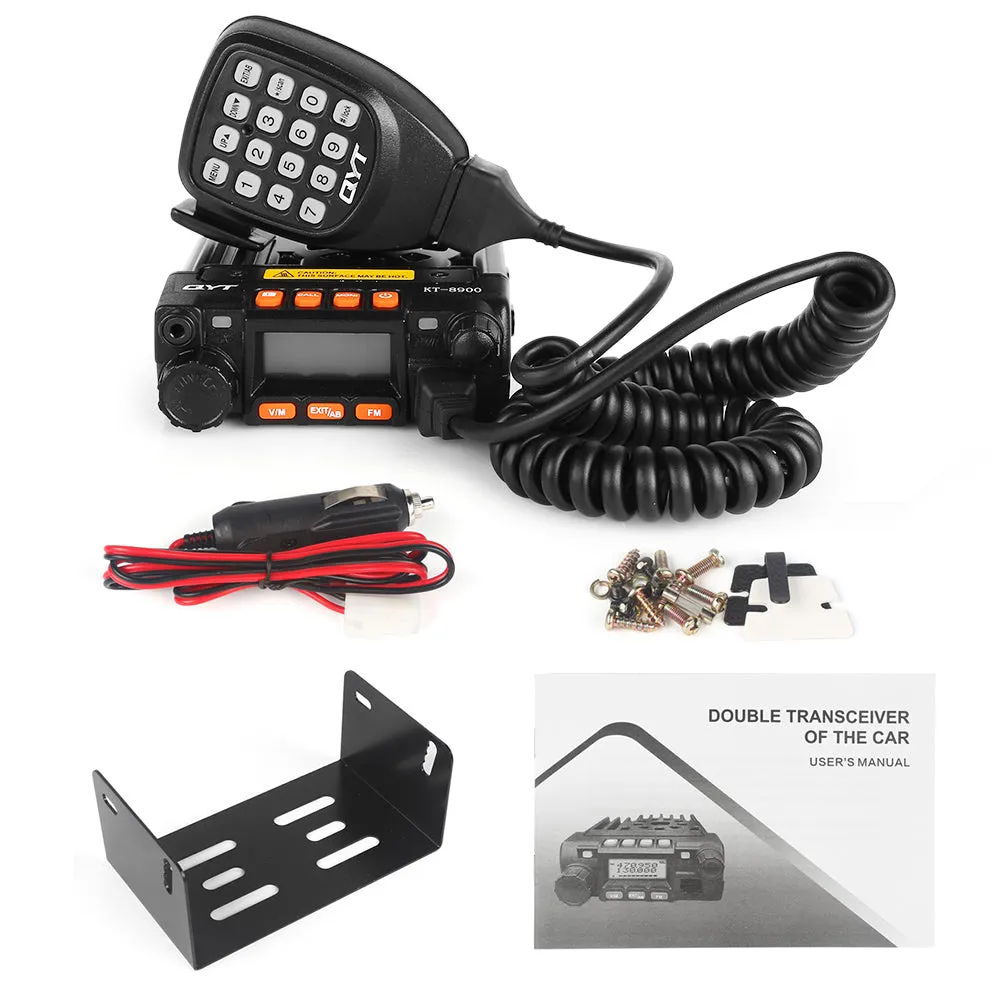

Package
1xRadio

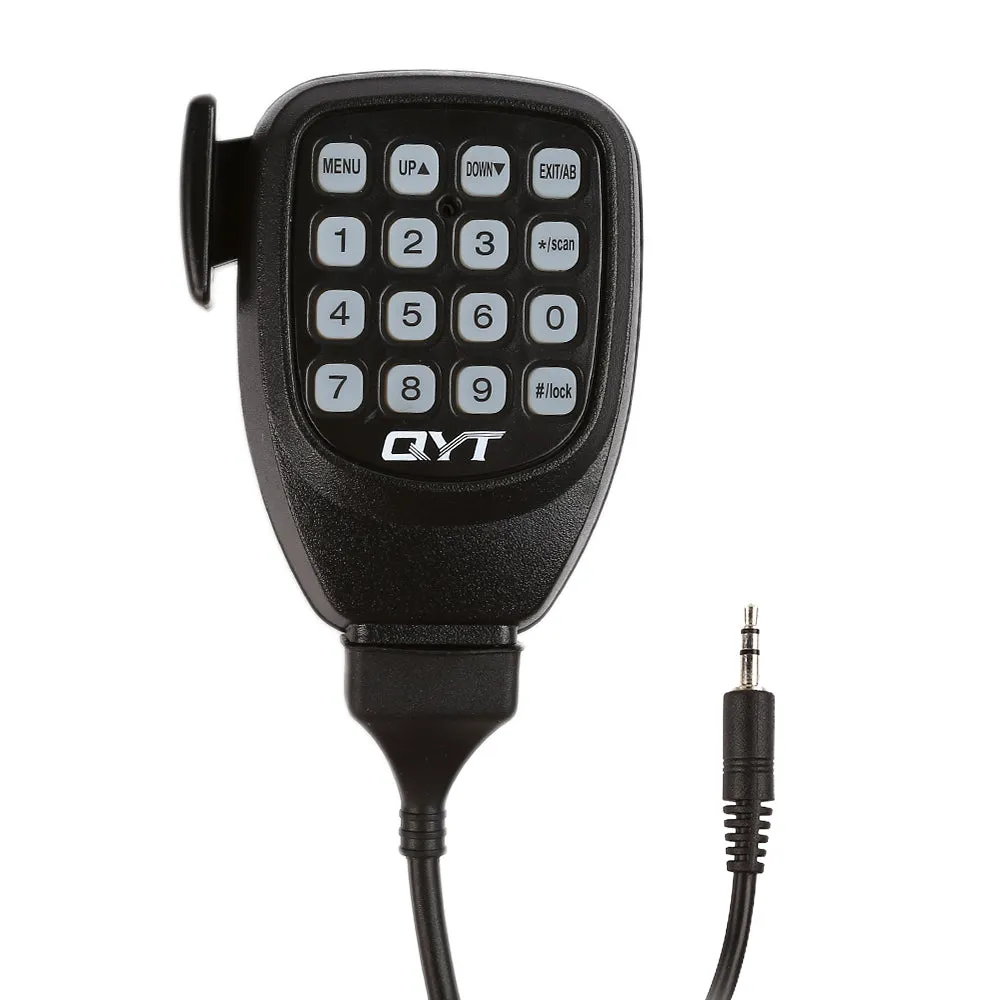

1xKeypad Microphone

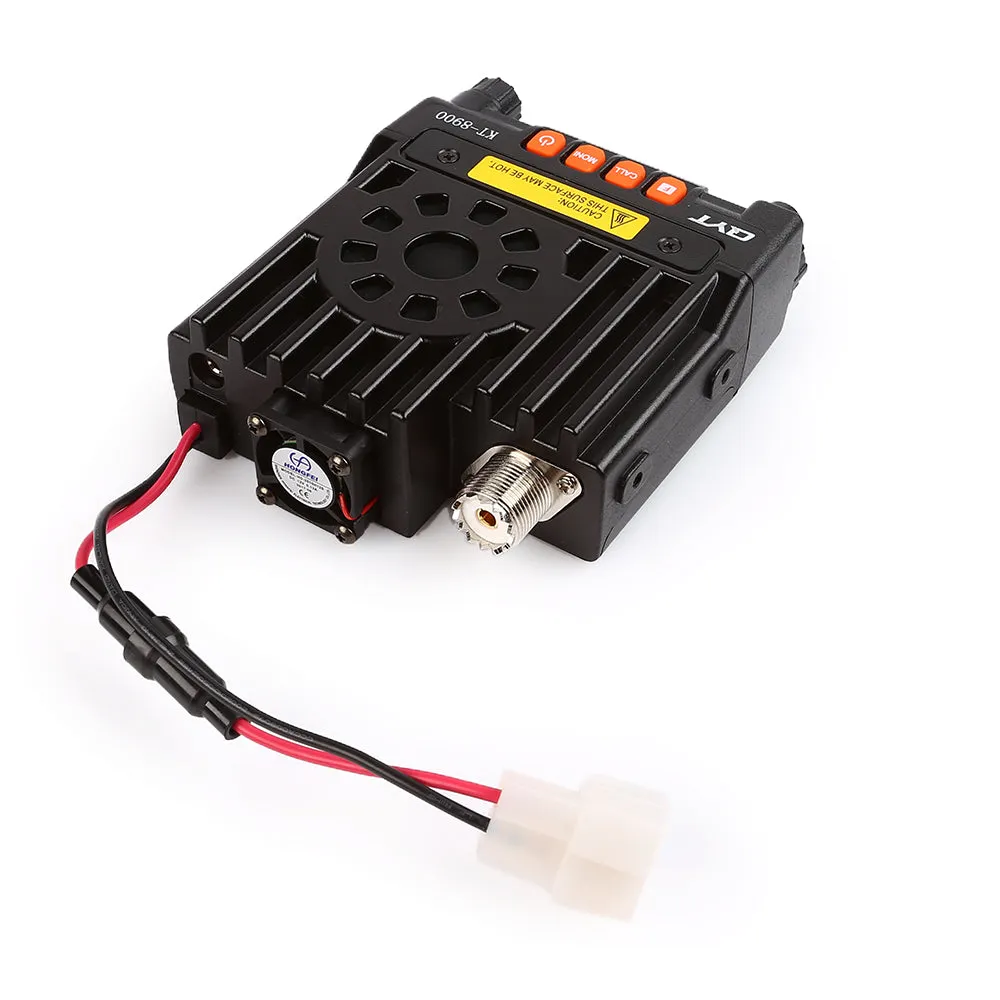

1xCAR Power Cable
1xBracket
1xBracket Screw
1xManual

Notice
No SCR function
Knob is for using selecting menu only not for searching frequency.

Programming Software


The programming software support many systems except windows 8 or windows 10
