Product Details
+

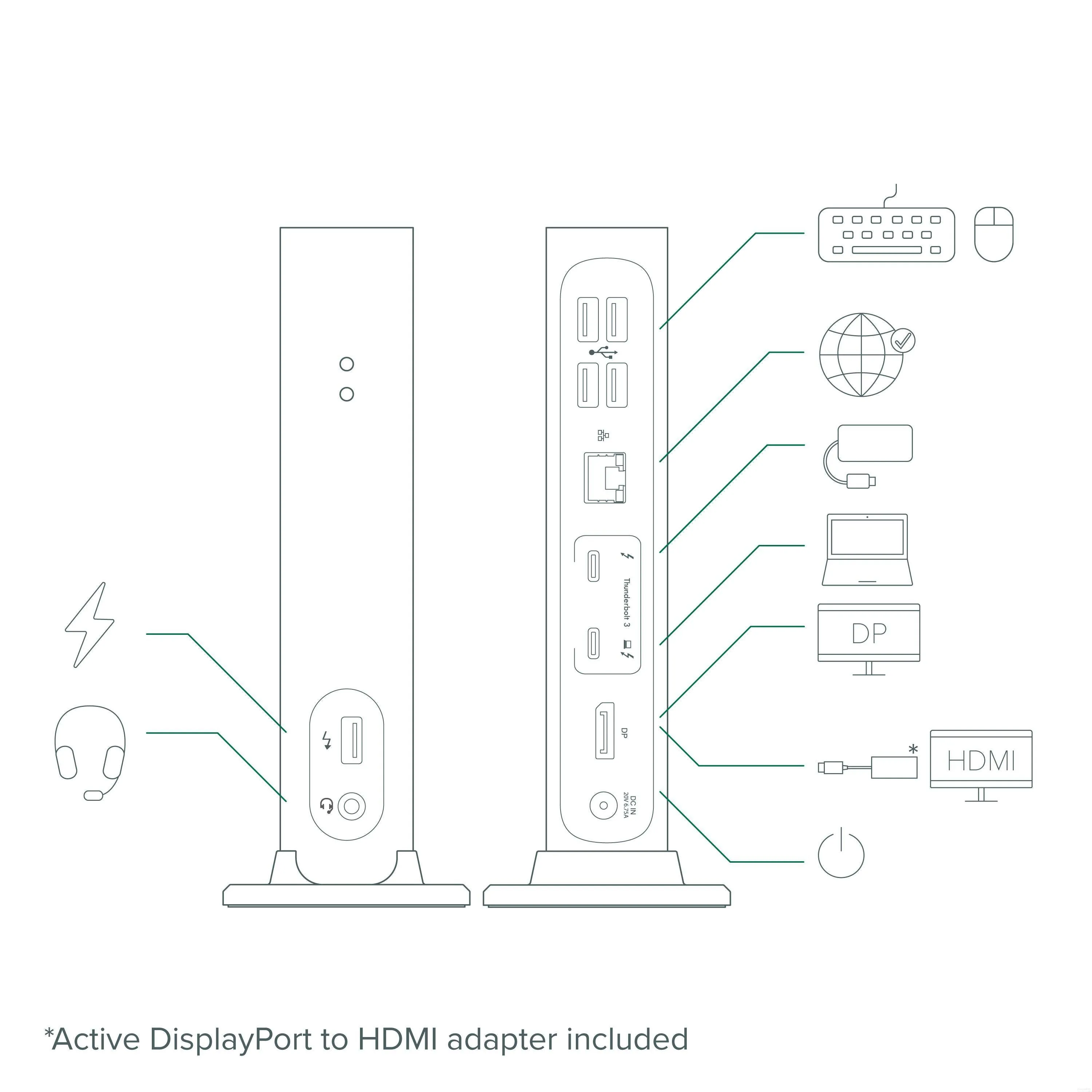

Plugable’s TBT3-UDV Thunderbolt 3 Docking Station offers high-performance expansion of your Thunderbolt 3-enabled Mac or compatible Windows Thunderbolt 3 system while also providing up to 60W of power to charge the host. Connect a DisplayPort display up to 4K@60Hz. DP to HDMI active adapter included. If supported by the host, a second display can be added using a purchased separately USB-C to video adapter or cable such as the Plugable USB-C to DisplayPort or Plugable USB-C to HDMI cable

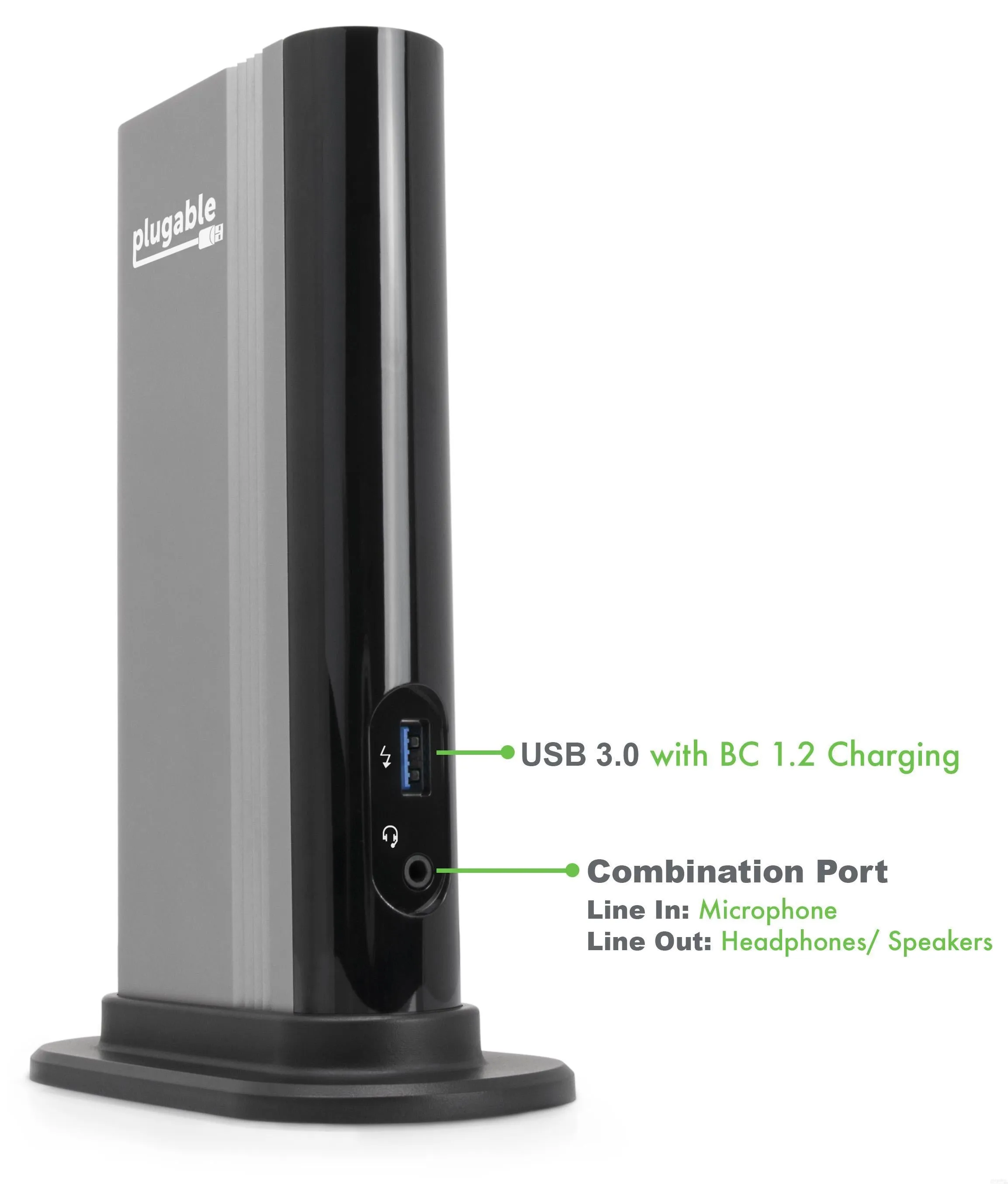

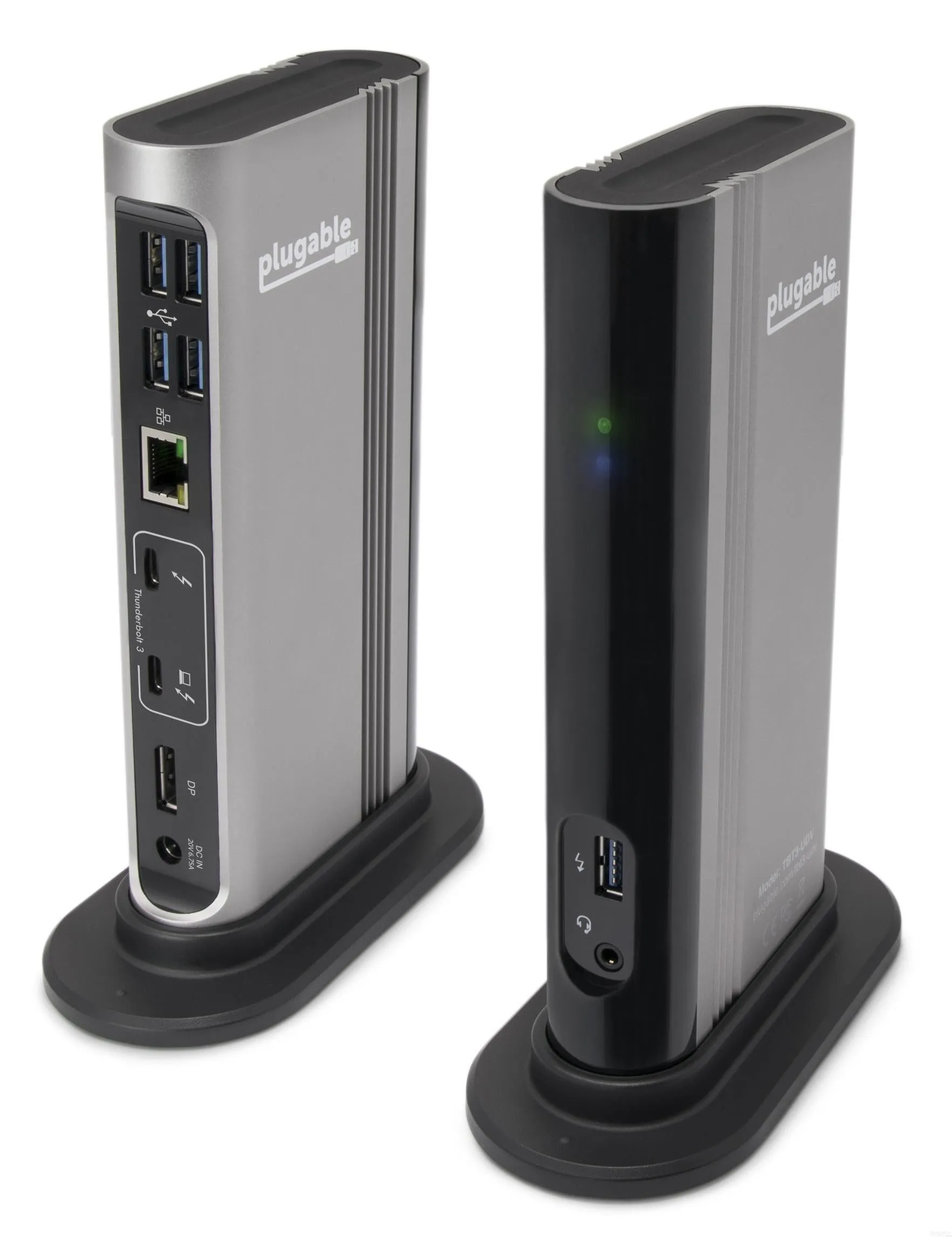

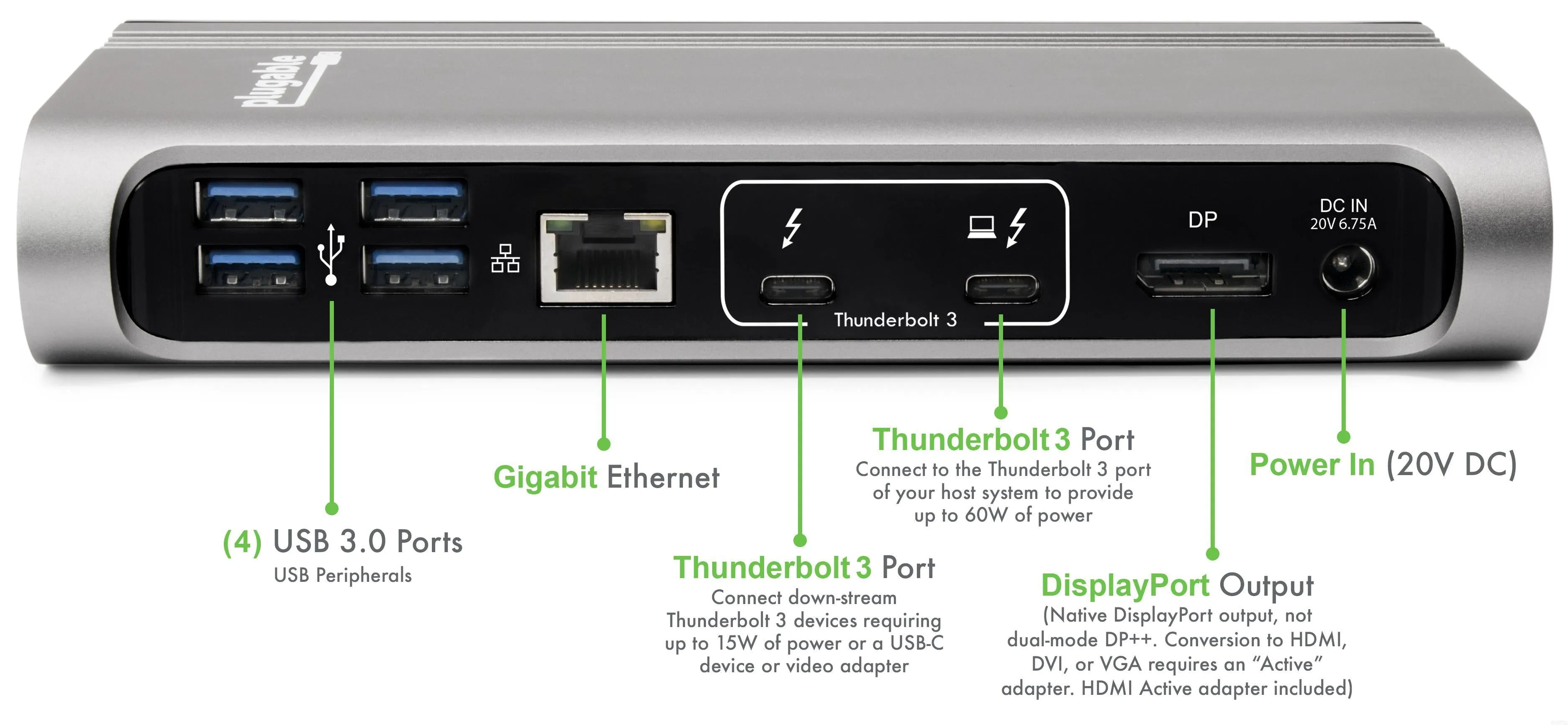

Supports connection to wired gigabit Ethernet networks using the integrated 1.0 Gbps i210 Intel network adapter and 10Gbps peer-to-peer networking when directly connected to a second Thunderbolt 3-enabled system. Tthis Thunderbolt 3 system can be used as a thunderbolt 4 dock with select systems. Provides a combined analog audio input and output jack for connecting stereo headphones and microphone. Provides five extra USB 3.0 Type-A ports for device connectivity (one in front, four in back). Is positioned vertically to save space, and has a removable stand that also allows the unit to placed horizontally.
Best performance on Apple and Dell Thunderbolt 3 systems; compatibility with other Thunderbolt 3 systems varies depending on BIOS and firmware updates from your manufacturer. Requires updated NVM firmware, BIOS, and Thunderbolt/GPU drivers on host system. To use as a USBC dock check for Thunderbolt 3 compatibility; docking station will not function if attached to a non-Thunderbolt 3 capable USB-C port.
Dell and Apple Thunderbolt 3 systems with Intel processors support a second display through the dock, but require an additional USB-C to video adapter (purchased separately). Apple Thunderbolt 3 systems with an Apple M1 processor only support a single display

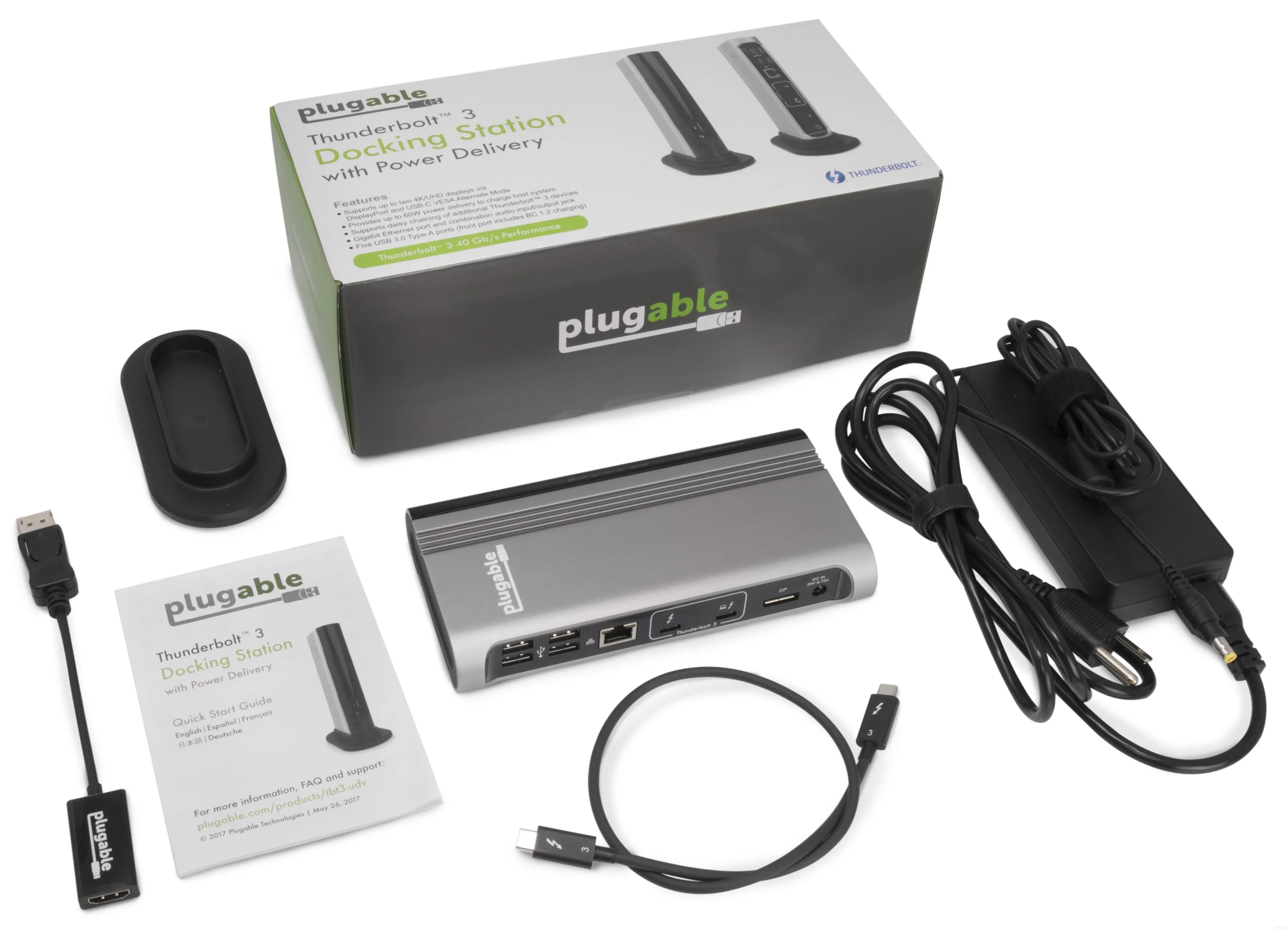

Included in the box are the Thunderbolt 3 dock, a 0.5 meter (20 inches) Thunderbolt 3 40 Gb/s cable, quick installation guide and a UL certified 20V/6.75A (135W) power adapter (US AC Wall Outlet Plug, 100-240V 50/60Hz)
Supports connection to wired gigabit Ethernet networks using the integrated 1.0 Gbps i210 Intel network adapter and 10Gbps peer-to-peer networking when directly connected to a second Thunderbolt 3-enabled system. Tthis Thunderbolt 3 system can be used as a thunderbolt 4 dock with select systems. Provides a combined analog audio input and output jack for connecting stereo headphones and microphone. Provides five extra USB 3.0 Type-A ports for device connectivity (one in front, four in back). Is positioned vertically to save space, and has a removable stand that also allows the unit to placed horizontally.
Best performance on Apple and Dell Thunderbolt 3 systems; compatibility with other Thunderbolt 3 systems varies depending on BIOS and firmware updates from your manufacturer. Requires updated NVM firmware, BIOS, and Thunderbolt/GPU drivers on host system. To use as a USBC dock check for Thunderbolt 3 compatibility; docking station will not function if attached to a non-Thunderbolt 3 capable USB-C port.
Dell and Apple Thunderbolt 3 systems with Intel processors support a second display through the dock, but require an additional USB-C to video adapter (purchased separately). Apple Thunderbolt 3 systems with an Apple M1 processor only support a single display
Included in the box are the Thunderbolt 3 dock, a 0.5 meter (20 inches) Thunderbolt 3 40 Gb/s cable, quick installation guide and a UL certified 20V/6.75A (135W) power adapter (US AC Wall Outlet Plug, 100-240V 50/60Hz)
