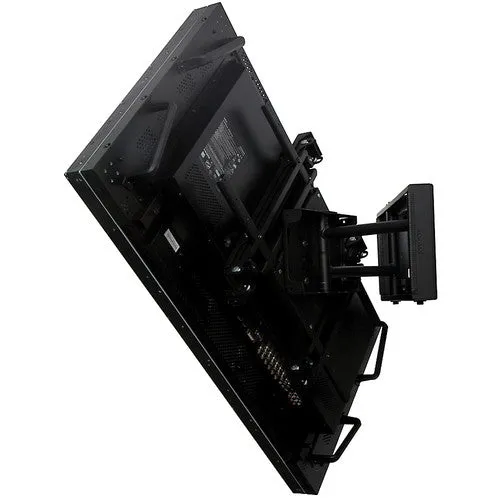

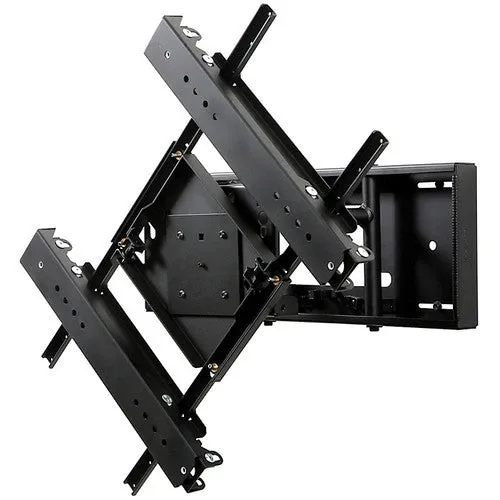

The DS-VWM770 Special Purpose Video Wall Mount from Peerless-AV allows designers to take video walls to the next level. Displays attach to the mount in 15 degree increments providing designers with an endless array of design possibilities. Ten points of micro-adjustment delivers the fine tuning needed to create a seamless video wall appearance. In addition, the mount extends from the wall and pivots for quick and convenient rear display access and servicing. Once finished, simply push the display back where it securely clips in the home position.
- Display attaches to the mount in 15° increments from 0 ° – 360 ° providing designers with endless creative possibilities
- Display extends from the wall allowing the user to easily service the video wall
- Ten points of micro adjustment provide precise video wall alignment
- Includes security lock out screw to eliminate pull-out ability
- Accommodates VESA® mounting patterns of 300 x 300, 400 x 200, 400 x 300, 400 x 400, 600 x 400mm
- Offers up to 90° of swivel for convenient rear access when extended from the wall
Product Specifications
-
Minimum to Maximum Screen Size
46" to 70"
-
VESA Pattern
300 x 300, 400 x 200, 400 x 300, 400 x 400, 600 x 400
-
Weight Capacity
125lb (56kg)
-
Color
Black
-
Finish
Powder Coat
-
Security Features
Security Hardware
-
Distance from Wall
4.45 - 12.95" (113 - 329mm)
-
Product Dimensions
26.94” x 18.79” x 4.45”-12.95” (684 x 477 x 113-329mm)
-
Product Weight
35lb (15.9kg)
