Where a low cost mounting is required for the effective isolation of noise and vibration from
machinery, particularly with speeds from about 1,000 RPM (16 R/s) upwards, and also from
wall mounted machinery such as air conditioning/refrigeration condensers, neoprene mounts
are the preferred choice because neoprene is more durable than natural rubber and cheaper
synthetic compounds. The mounts are recommended for use in compression only, and are non-seismic rated.

Features

• Moulded in oil-resistant Neoprene
• Zinc plated screws and washers are fitted
• Corrosion-free - metal parts embedded in Neoprene
• Non-skid base

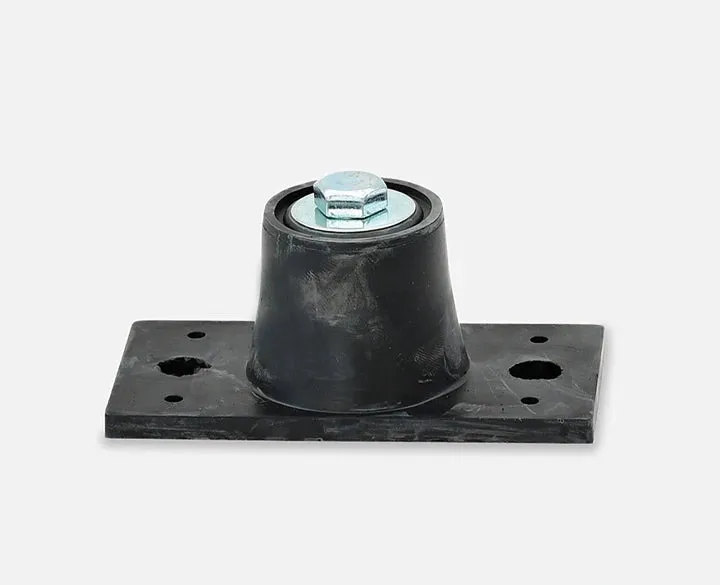

Neoprene Wall Backed Mounts

These double deflection Neoprene mounts have been made specifically to fit on to strut
cantilever brackets. The bases are about 45mm wide and 88mm long with two bolt holes
(9.8mm) in the base at 64mm centres. They have an unladen height of 37mm and settle
down to between 32 mm and 28 mm depending upon the load, and are designed for
compression loads from 15-30 Kgs and 90-180 Kgs.
