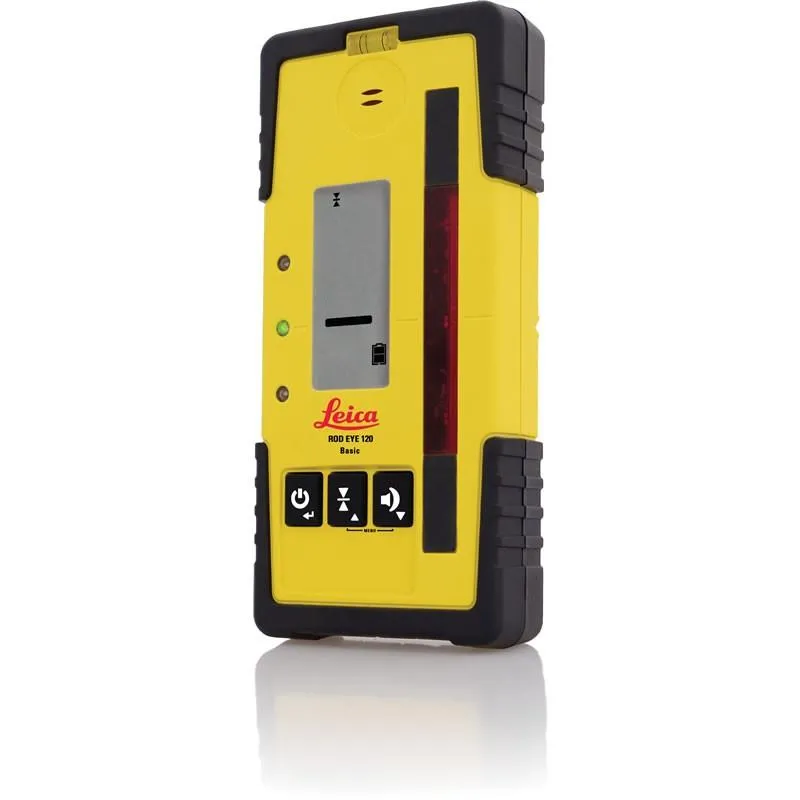

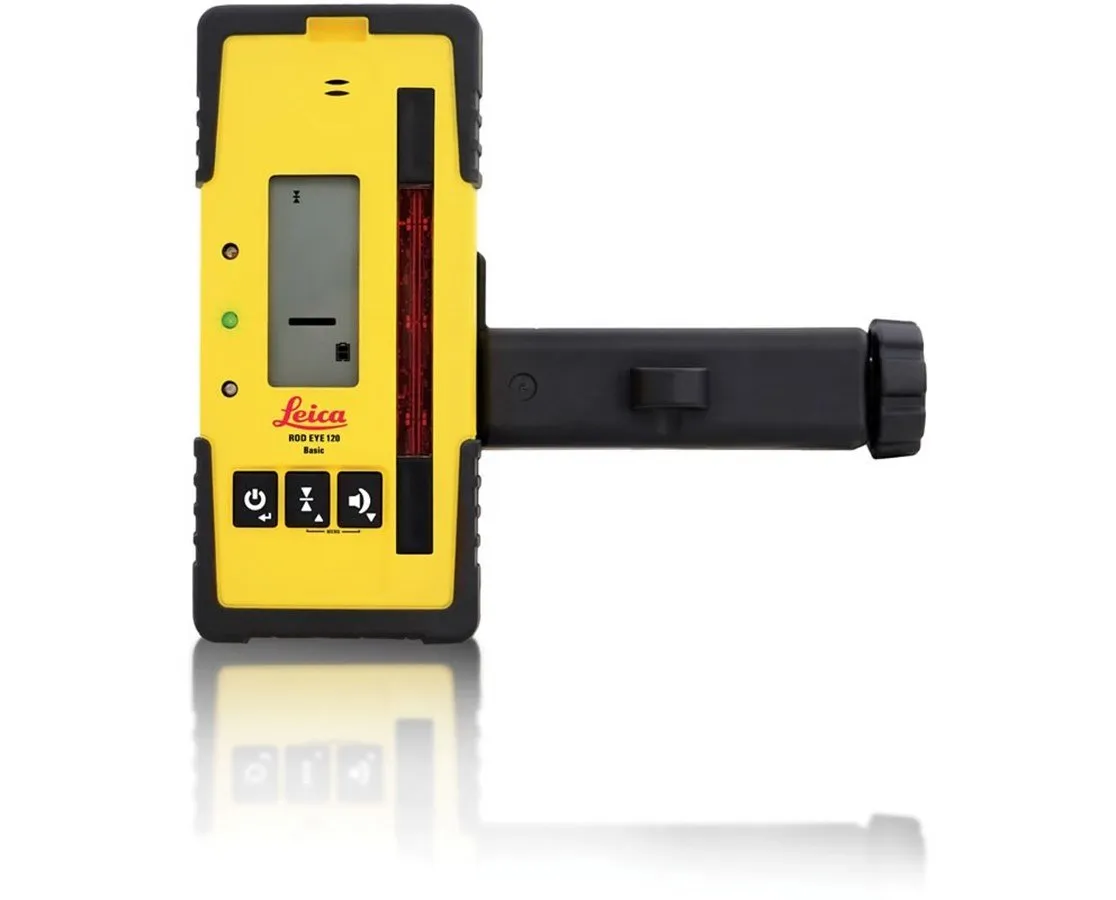

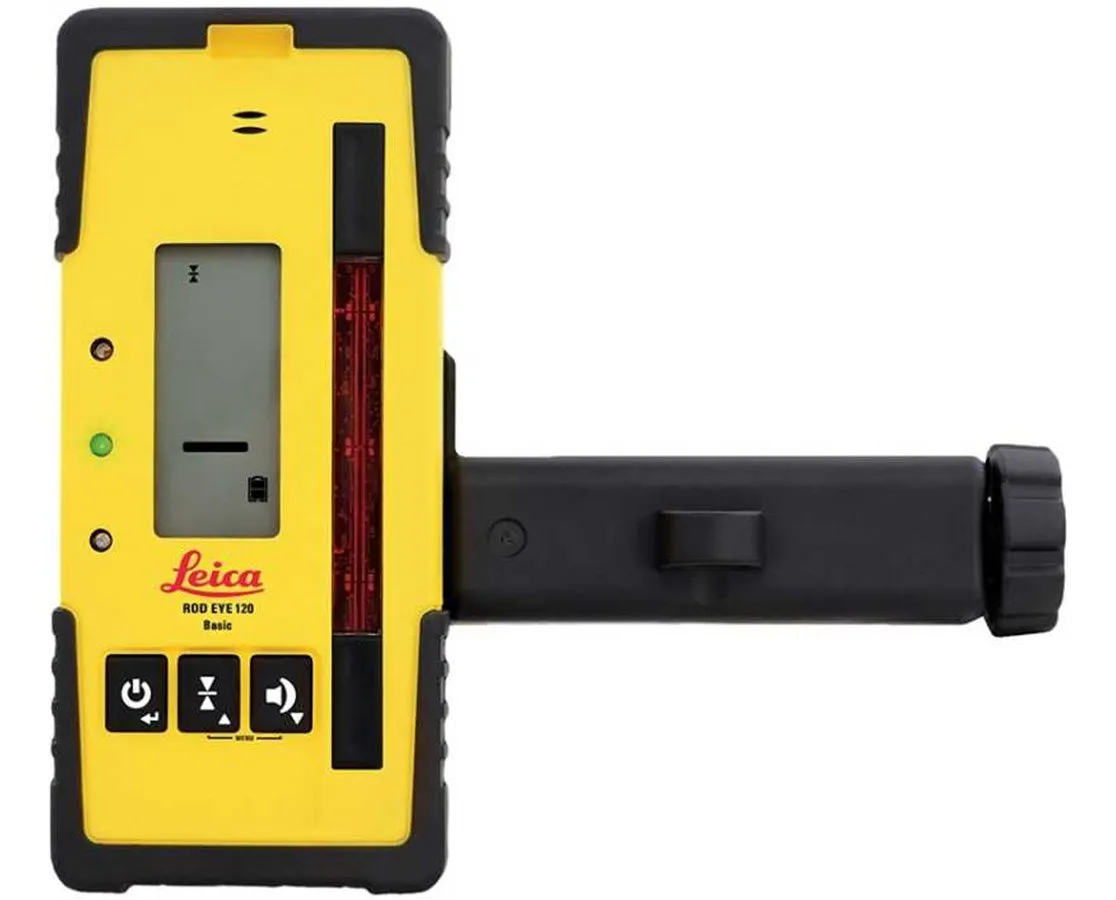

Rod Eye 120 Classic Laser Receiver & Bracket

The Leica Rod Eye 120 Basic Receiver is designed for the Leica Rugby rotary laser levels and other Leica’s existing products. With a working range of up to 2,950 feet, this receiver has a detection window of 2.75 inches. Made reliable with its three detection accuracies and nine channels, the Rod-Eye 120 also features three settings for audio indication.

Built with two clear LCD displays on both front and back of the receiver, the Rod-Eye has an IP67 rating perfect for all demanding and rugged job sites. With a 50-hour battery life using two alkaline batteries, it also has an automatic shutoff function after 10 minutes of idle activity. Comes with a grade rod bracket and a circular level vial, the Rod-Eye 120 is a great tool for all general construction applications.

Features

Range up to 2,950 feet
Detection window of 2.75 inches
Three detectable accuracies
9 arrow display channels
Audio indication
Automatic shutoff
Dual graphics LCD display
Water resistant and dustproof to IP67
Bracket included
Circular level vial
50-hour battery life

Includes

Leica Rod Eye 120 Basic Receiver 789922
Grade rod bracket

Specifications

General
Dimensions	1.14”L x 2.99W” x 6.81”H
Protection Class	IP67
Bracket/Clamp	Included
Accuracy
Fine	±1 mm
Medium	±2 mm
Coarse	±3 mm
Battery/Power
Power Source	AA alkaline batteries
Battery Life	50 hours
Low Battery Indicator	yes
Temperature
Operating	-4°~ 122°F (-20°~ 50°C)
Features
Channels	9
Display	Dual LCD
Automatic Shutoff	After 10 minutes of idle activity
