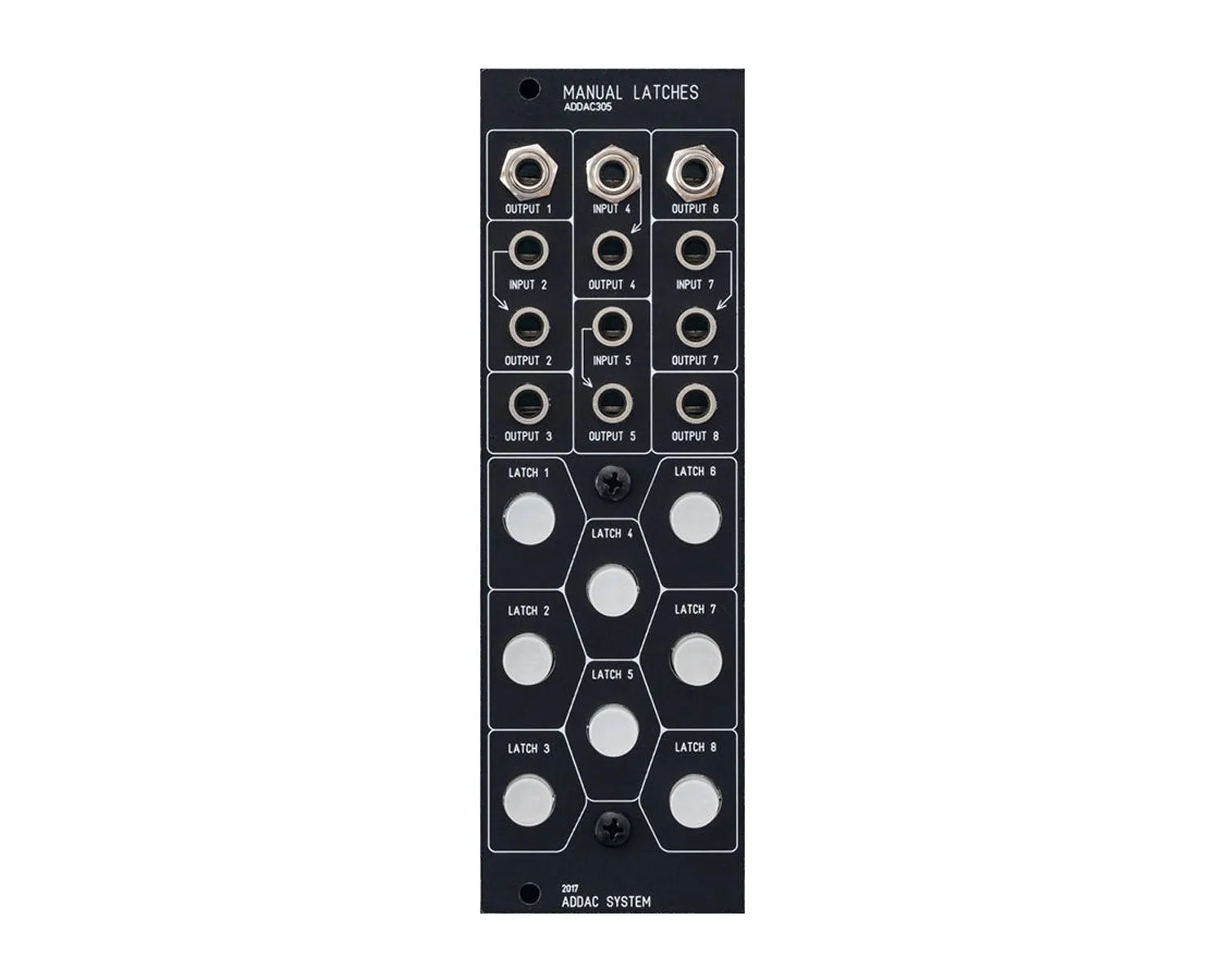

The ADDAC305 Manual Latches is an (8HP) eight-channel latching gate generator and muting module suited for creating toggle-like behaviours and turning a variety of destinations on or off.
Four of the channels feature a steady 5v signal which is turned on by one press of the corresponding button and turned off by pressing the button again. The other four channels feature an input which allows you to pass audio or control voltage signals through the module and mute and un-mute them on the go.
A 5v signal is normalised into these four channels as well, so when nothing is patched, they output the same 5v signal the other buttons output.

Video:

Product Specs

• Item Number: 20239
• Make:
• Model:
• Condition:
• Finish: Black
• Categories: ⇒
• Function:
• Made In: Portugal
• MPN: ADDAC305
• Modular Grid: Eurorack
• Dimensions*: 8 HP 25 mm deep
• Power*: 10 mA 12V 0 mA -12V 0 mA 5V

* User contributed details
